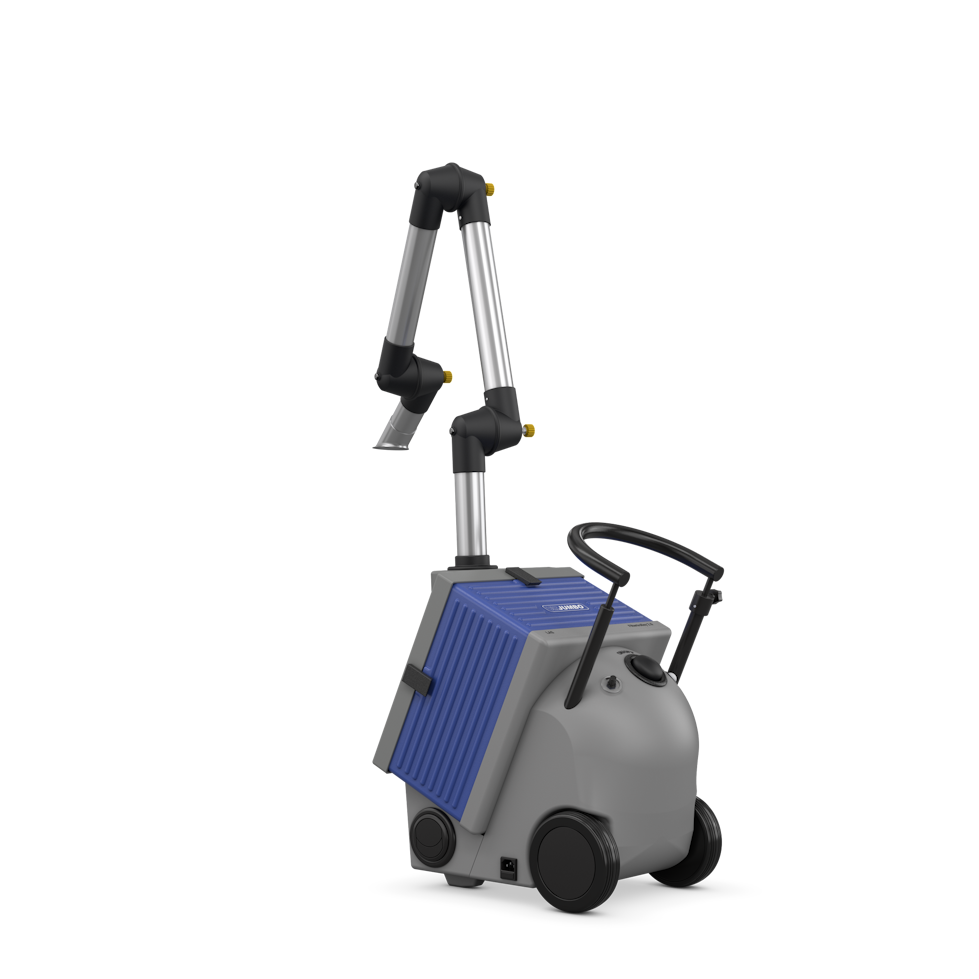

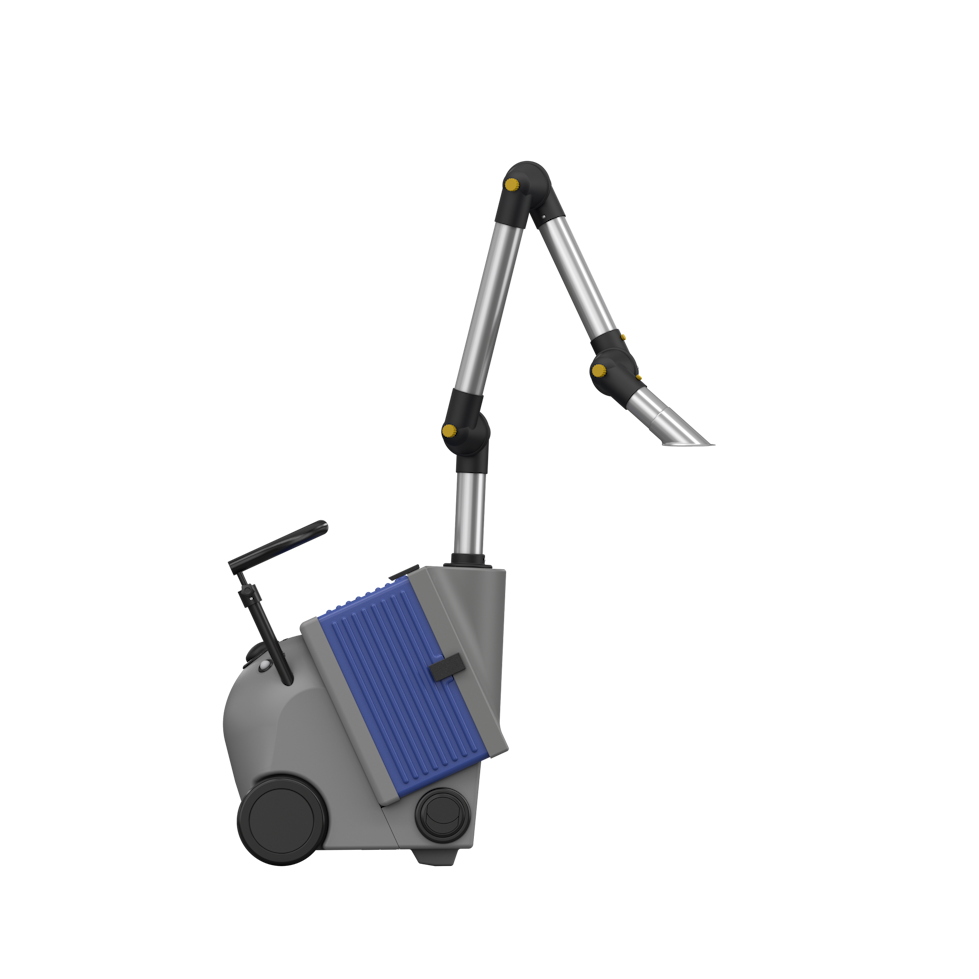

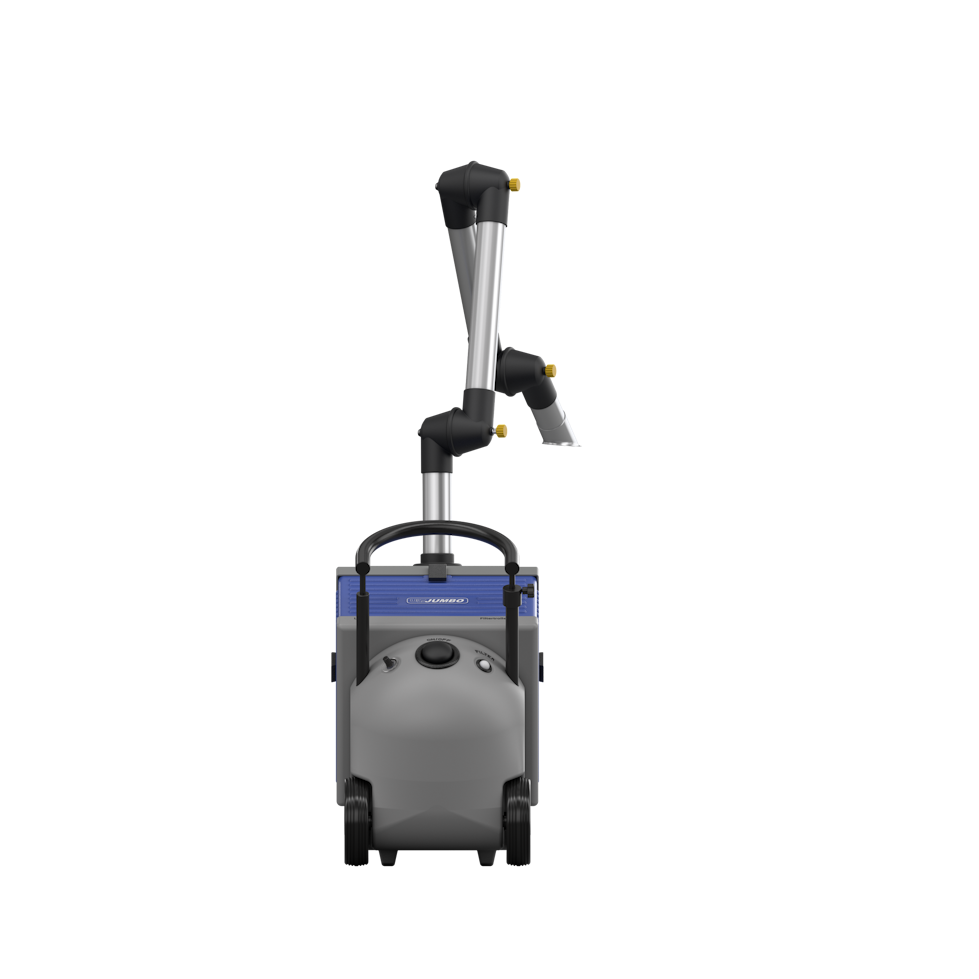

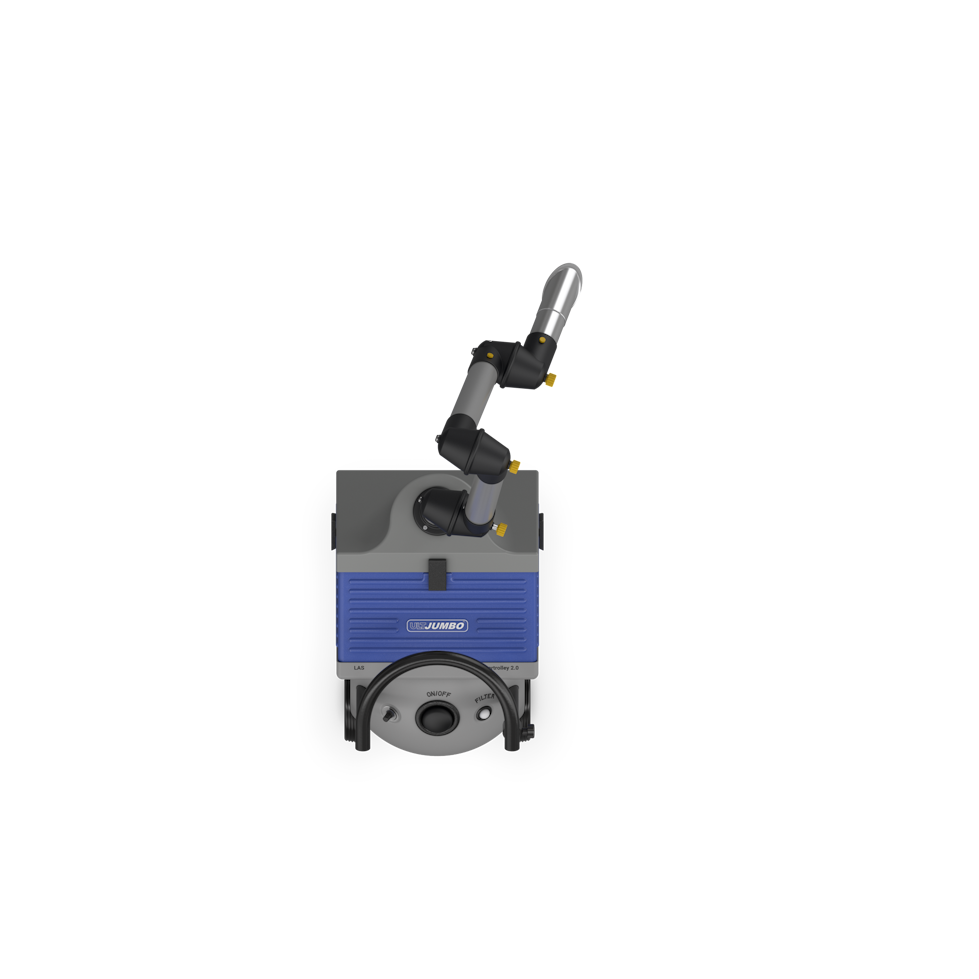

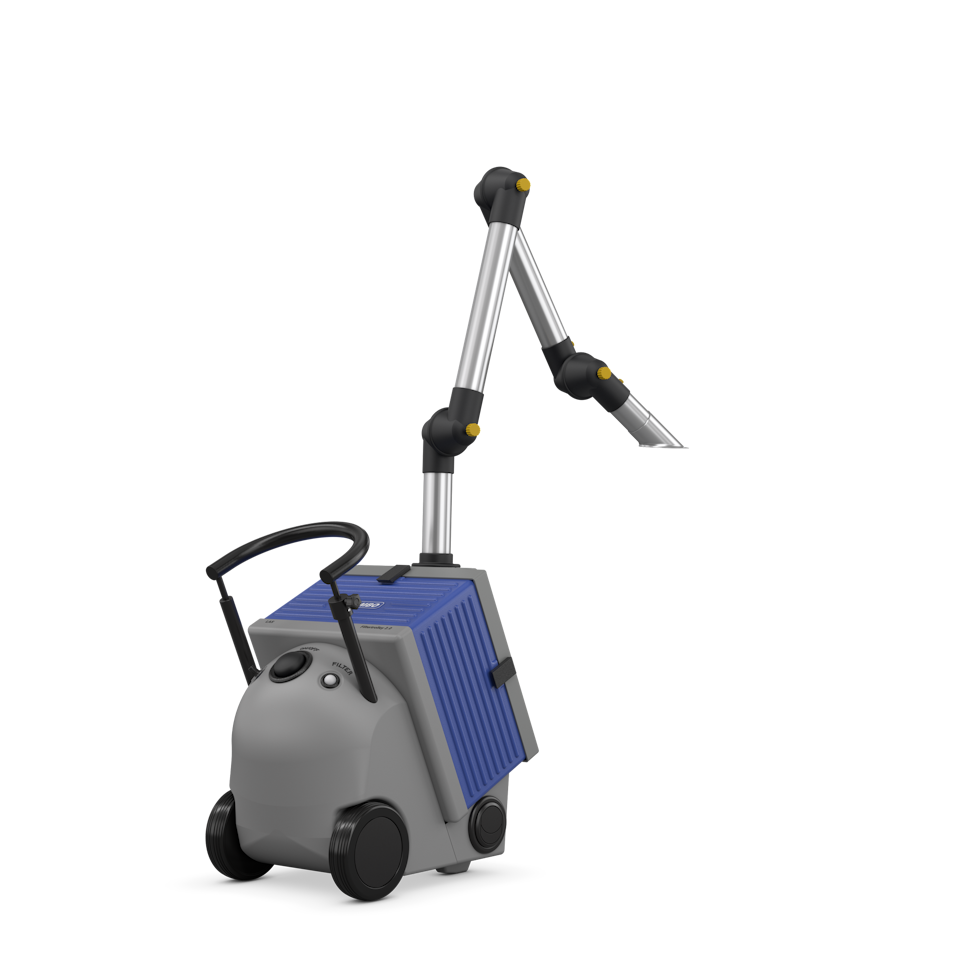

JUMBO Filtertrolley LAS – mobile laser fume extractor
Product details
Application fields
Laser processes with small fume amounts
Laser structuring, ablation, marking, printing, etc
For changing workplaces and conditions
Features
Matchlessly designed mobile extraction and filter device
Flexible utilization for various applications
High extraction performance, stepless adjustment
Extremely quiet operation
Easy filter handling, access via suction plate
ABS Material (impact-resistant, chemical-resistant, corrosion-resistant)
Fittings for extraction arms ( Ø 50 / 75) and application-specific collecting elements
Technical specifications
| Device version | JUMBO Filtertrolley 2.0 LAS |
|---|---|
| Max. flow rate in m³/h | 190 |
| Max. flow rate in cfm | 112 |
| Max. vacuum in Pa | 3200 |
| Max. vacuum in inch wc | 12.9 |
| Nominal capacity in m³/h@Pa | 80 @ 1900 |
| Nominal capacity in cfm@inch wc | 47 @ 7.6 |

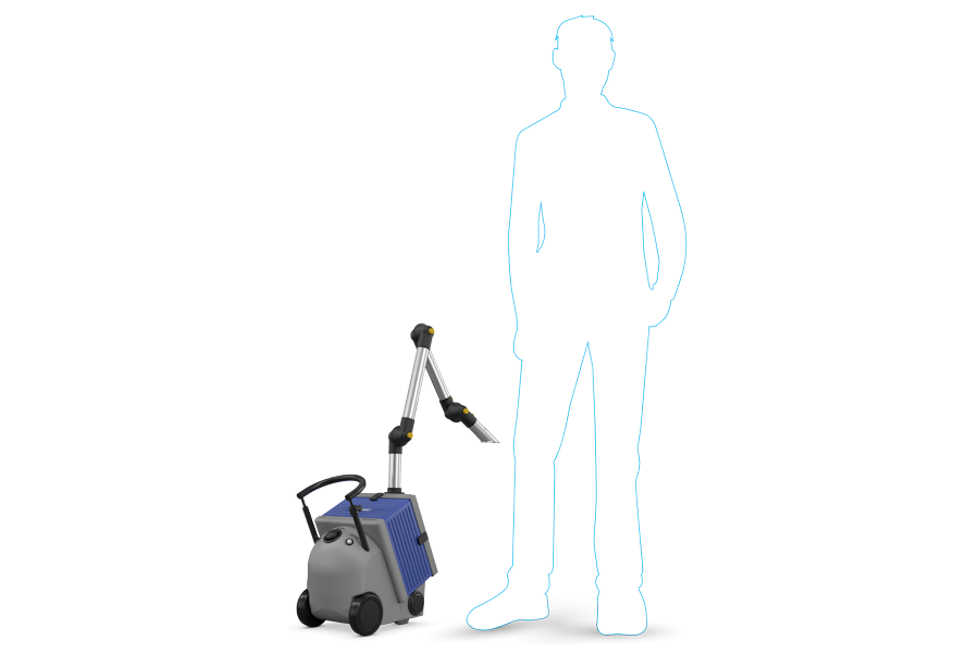

| Dimensions in mm (WxDxH) | 450x340x530 |
| Dimensions in inch (WxDxH) | 17.8x13.4x20.8 |
| Weight in kg | 36 |
| Weight in lbs | 79 |
| Noise level in dB | 49 |
| Connection variants – diameter in mm | 1 X 50 / option: 1 X 75 |
| Connection variants – diameter in inch | 1 X 1.97 / option: 1 X 2.95 |
System benefits
Quiet operation
ULT’s extraction and filtration systems are especially quiet. This is appreciated by numerous clients worldwide. This means your employees won’t be bothered by unnecessary noise.
High flexibility
Many of the ULT fume extraction systems can be utilized flexibly. For example, you can choose between mobile or stationary systems, device integrations or special ventilation solutions. If necessary, the ideal application is configured by ULT experts on-site.
Optimal filter technology
Using the most sensible filtration technology ensures a long filter service life and, consequently, reduces the costs of maintenance and spare parts. ULT always offers you the optimal solution for your special contaminant technology to achieve the best filtration possible.
Easy servicing
ULT’s extraction and filtration systems are designed so that they can be put into operation without problems and easily used. Should there be any questions, our service technicians would be happy to assist you at any time.
Low energy requirements
ULT’s extraction systems reduce the operation and maintenance costs based on your optimal filtration plan. In addition, the system is designed so that the required energy consumption is kept very low.
R&D basis
Research and Development (R&D) has a very high priority at ULT. Several projects with prestigious partners and institutes have produced new approaches to ventilation systems that often become series products or are adapted quickly and easily to customer-specific projects.
