LAS 260.1 - the jack-of-all-trades for safe and clean laser processes
LAS 260.1 - the jack-of-all-trades for safe and clean laser processes
A clean work environment and efficient production

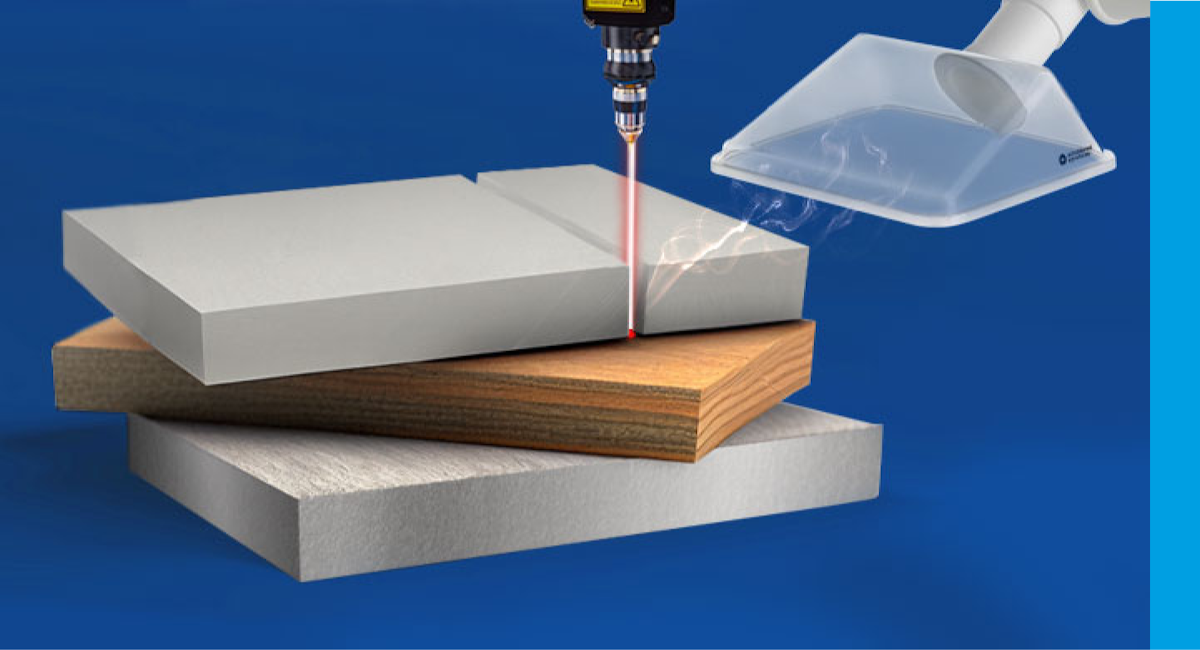

The LAS 260.1 can be used to extract and filter harmful smoke, powder, and fumes from a wide variety of materials, including metal, plastic, and wood. It is also easy to install and use, making it a convenient and cost-effective option for businesses of all sizes.
If you are looking for a safe and clean laser processing solution that can handle a variety of materials, the LAS 260.1 is the perfect choice.

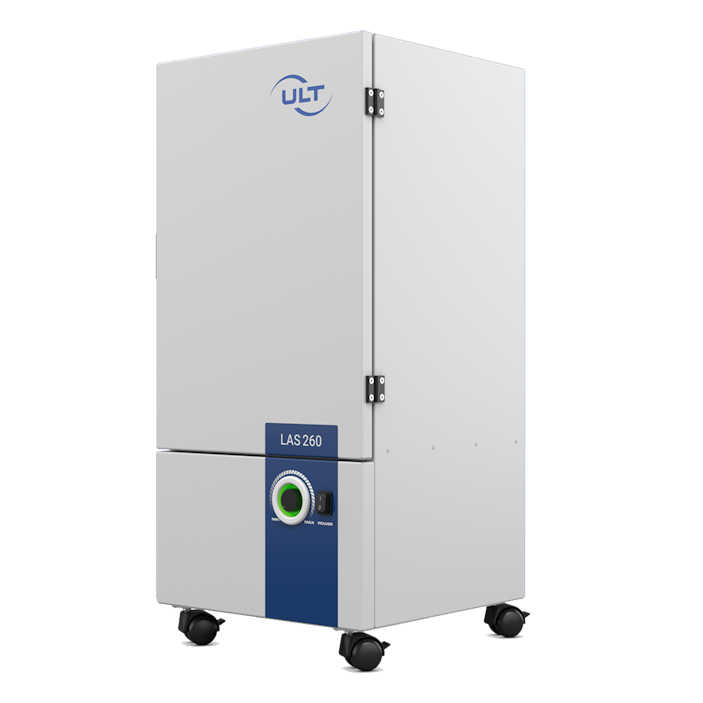

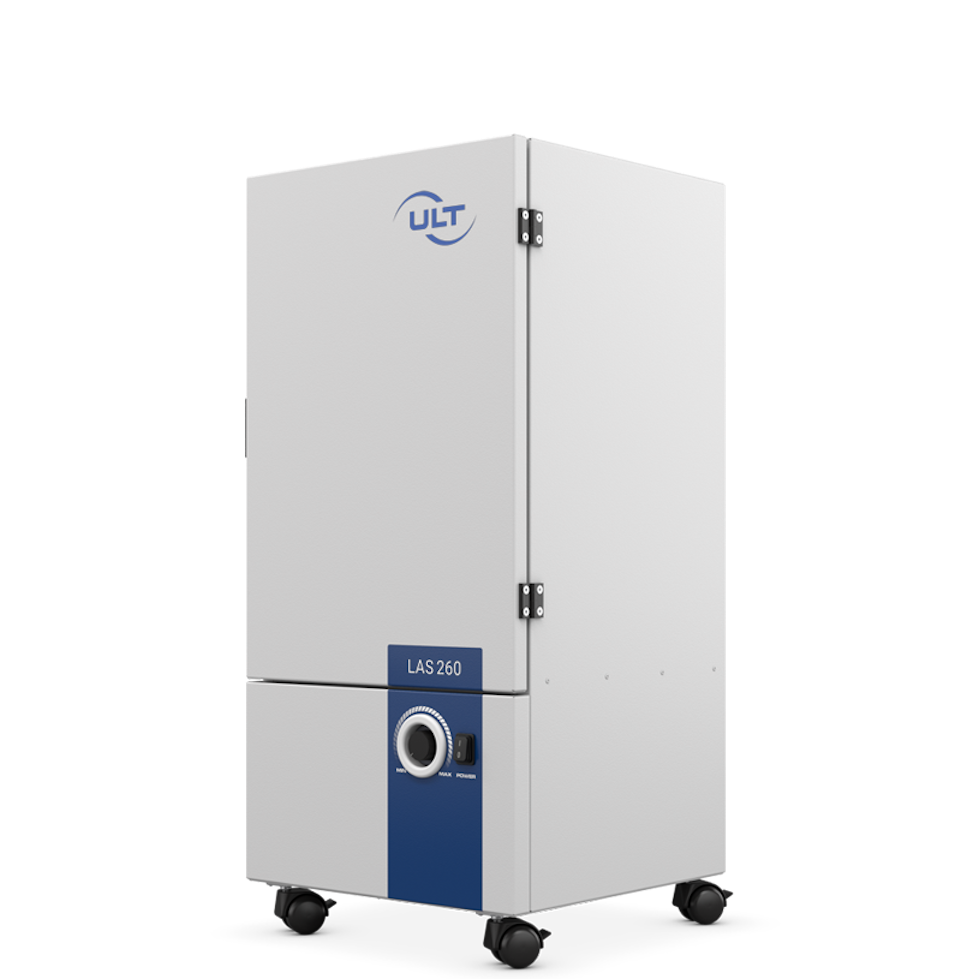

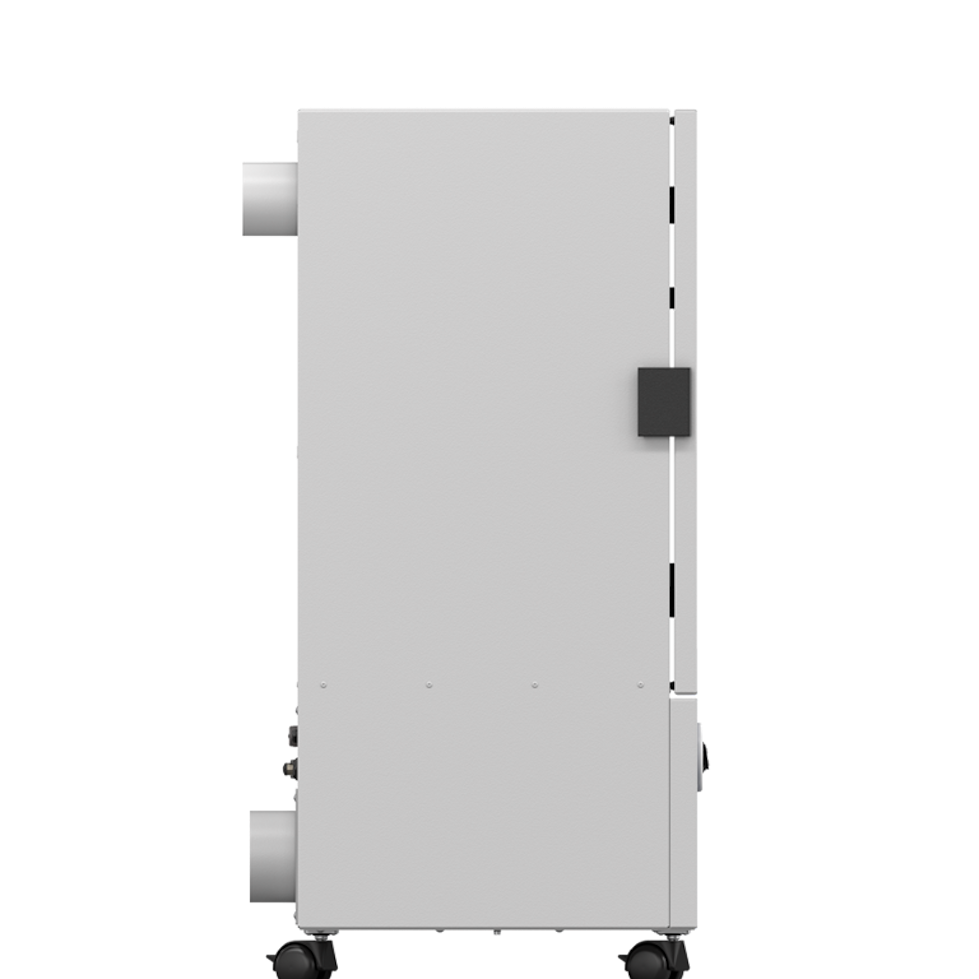

LAS 260.1
Silent Technology
Save Change Technology
Enhanced efficiency and reliability

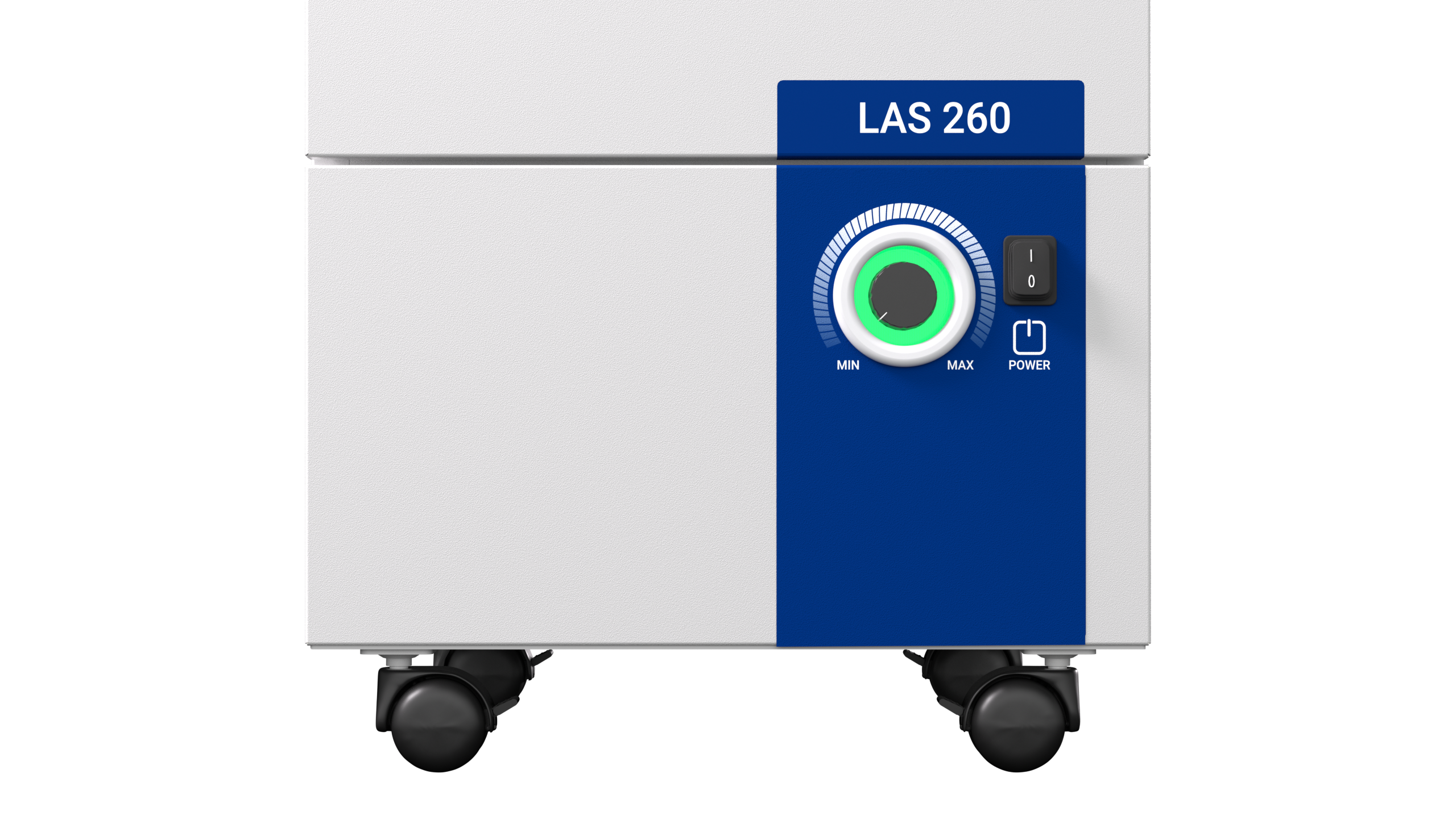

Easy to use
Compatible with your laser system

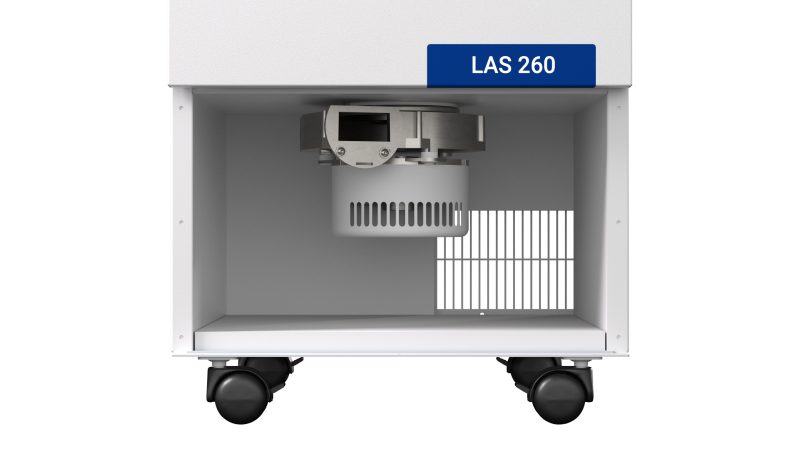

Energie Saving Technology

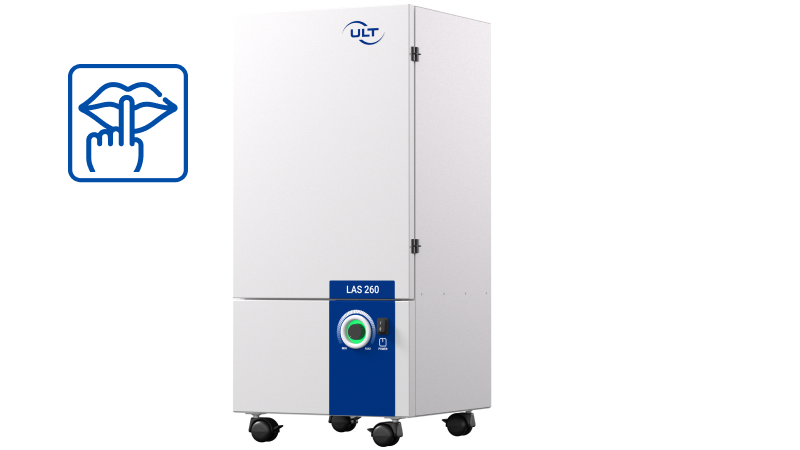

Silent Technology

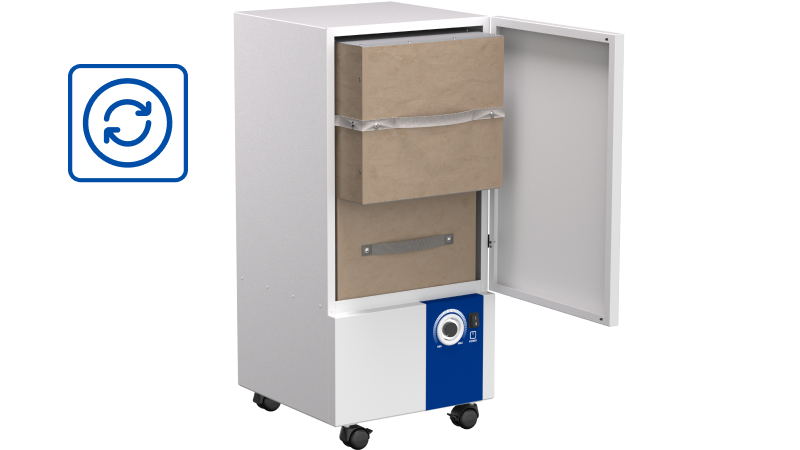

Save Change Technology
Enhanced efficiency and reliability
Easy to use
Technical specifications
| Device version | LAS 260.1 MD.20 |
|---|---|
| Max. flow rate in m³/h | 360 |
| Max. flow rate in cfm | 212 |
| Max. vacuum in Pa | 9500 |
| Max. vacuum in inch wc | 38 |
| Nominal capacity in m³/h@Pa | 200 @ 5000 |
| Nominal capacity in cfm@inch wc | 118 @ 20 |
| Dimensions in mm (WxDxH) | 440x508x958 |
| Dimensions in inch (WxDxH) | 17x20x38 |
| Weight in kg | 56 |
| Weight in lbs | 123 |
| Noise level in dB | 47 |

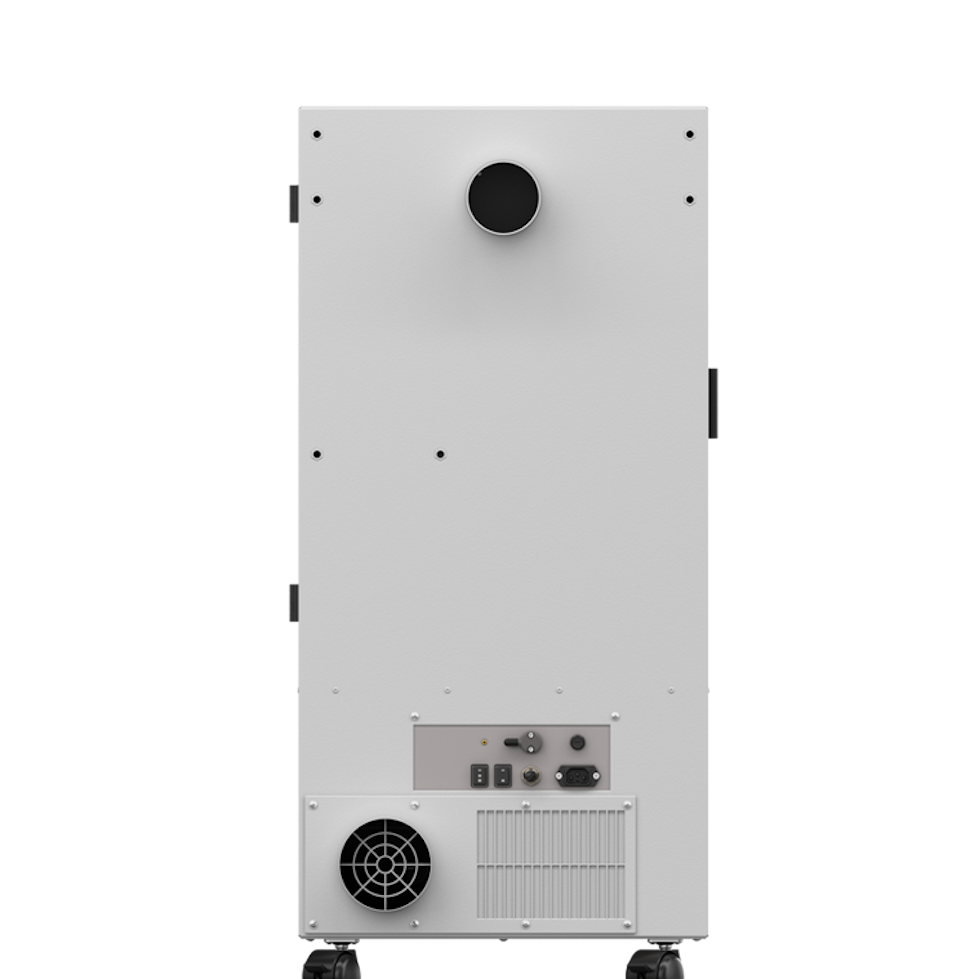

| Connection variants – diameter in mm | 1 X Ø 80 |
| Connection variants – diameter in inch | 1 x 3.15 |
Advice on our extraction and filtration technology
The filter system
The laser-specific storage filter system is readily available and ensures safety for lasers, products, and people. Filter replacement is easy and contamination-free. The intelligent, multi-stage filter system allows for long filter life and, as a result, stable production.

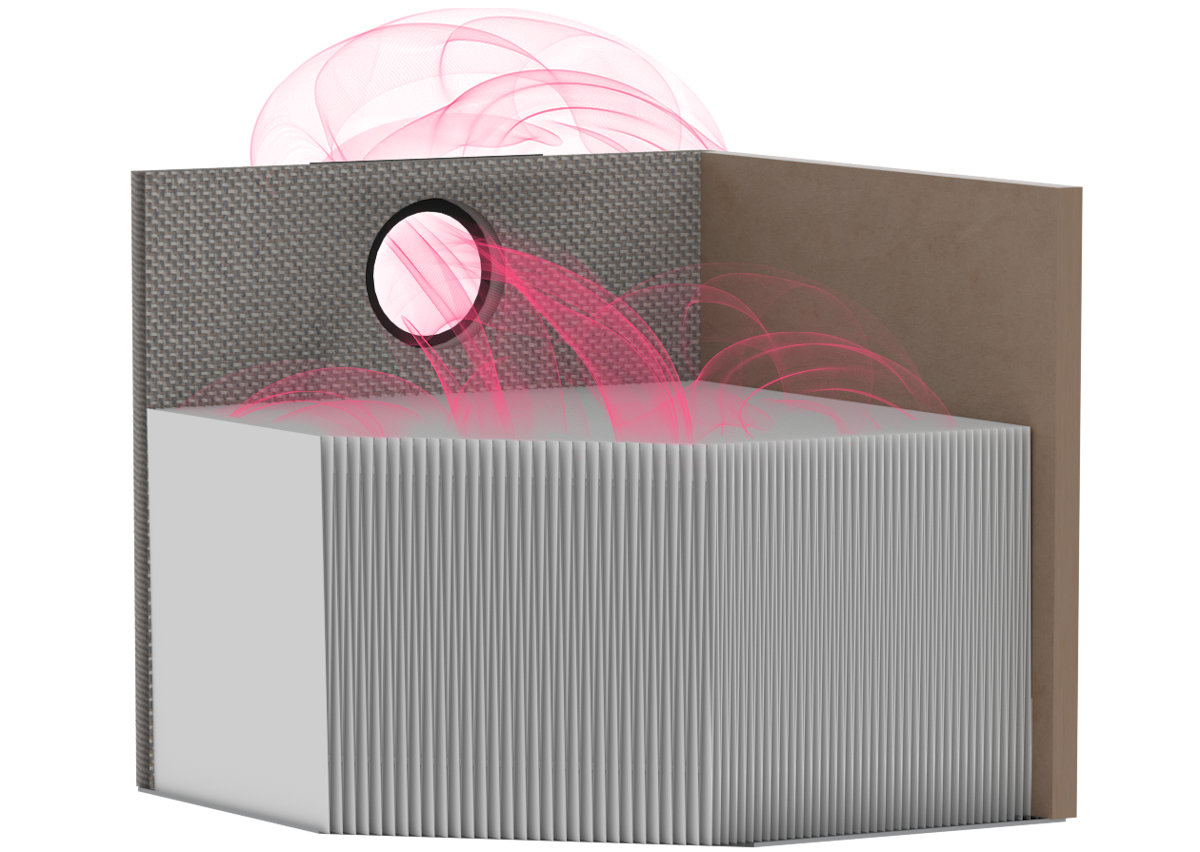

Particulate pre-filter stage with large filter surface
The used pre-filter cassette is an efficient particulate filter that removes all dust particles effectively. The large F9 filter surface improves filter performance and extends filter life.

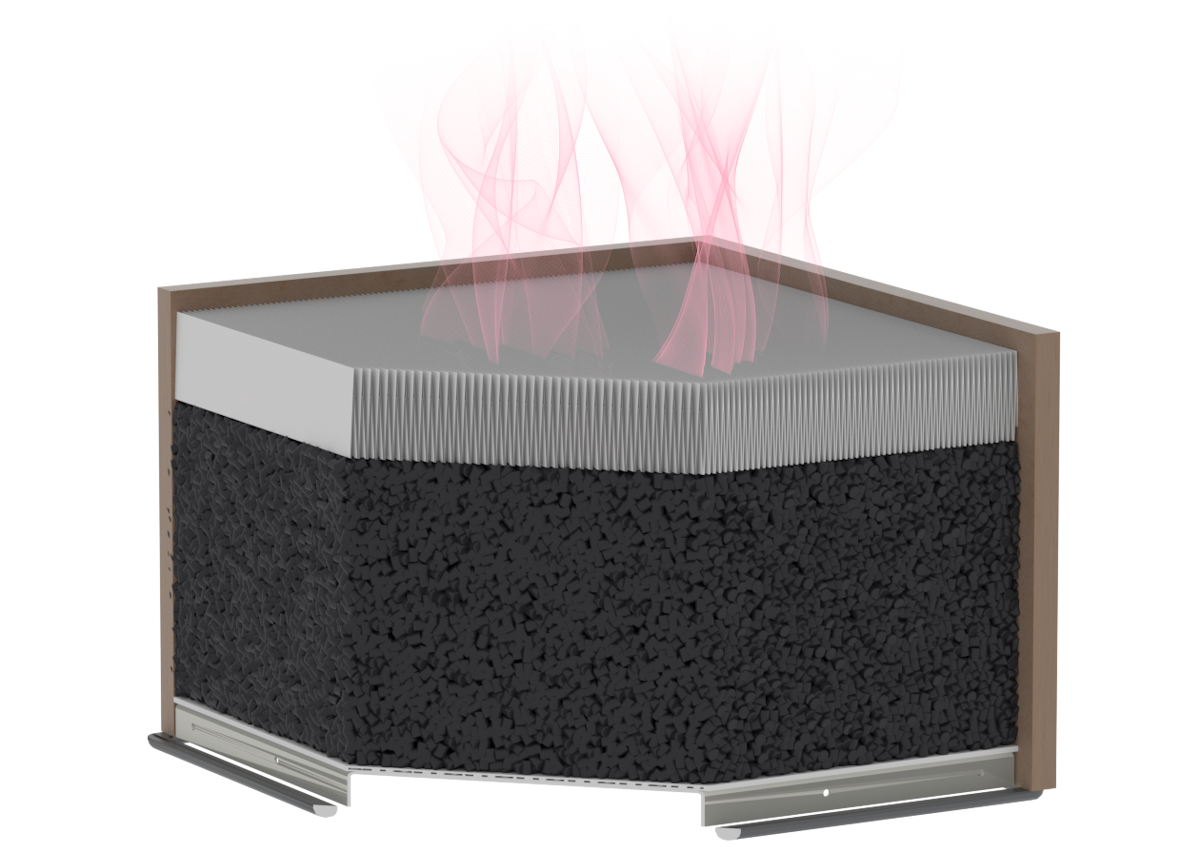

The strong combination of HEPA and activated carbon filters
The combination filter cartridge unites a high-quality H14 fine particle filter, which removes even the smallest nanoparticles, and a generously sized activated carbon bed that efficiently absorbs gaseous pollutants such as odors or vapors to ensure outstanding air purity.
High pollutant separation efficiency, long service life, and consistent pollutant collection
Our filter system offers many advantages:
High separation efficiency and high-quality filter components ensure clean air and long-term reliability, respectively. Low pressure loss optimizes energy efficiency and reduces operating costs.

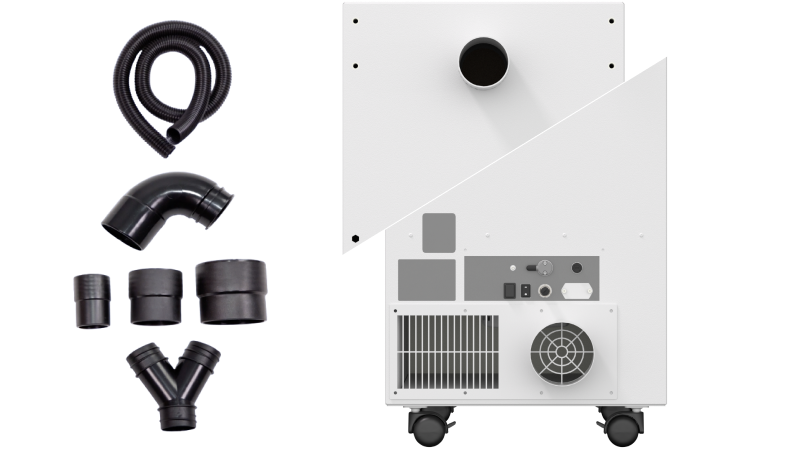

Optional accessories to meet your needs

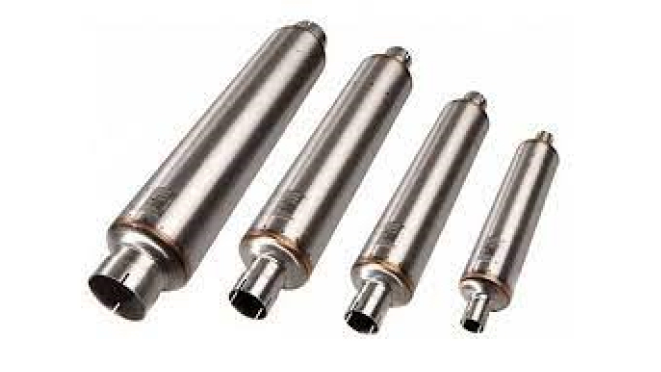

Spark arrestors for fire prevention

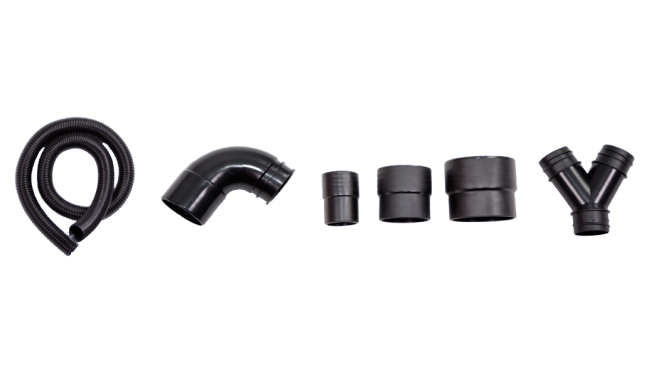

Hose adapter sets for customized connections

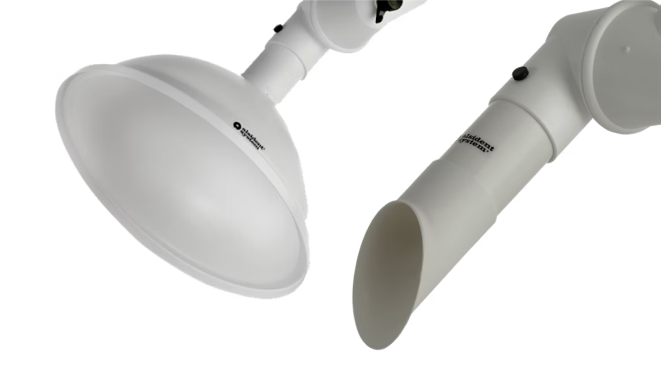

Extraction arms for efficient pollutant collection

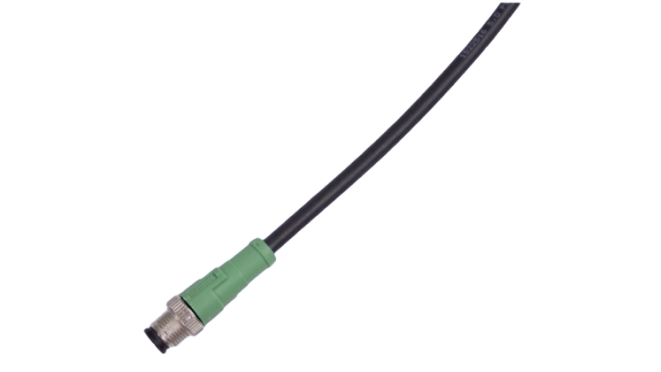

M12 adapter for custom interface configuration
Post-filter for cleanroom installation and noise reduction
