Laser engraving, laser marking, laser welding, laser cleaning
Laser structuring, laser melting, laser cutting, laser cladding, etc.

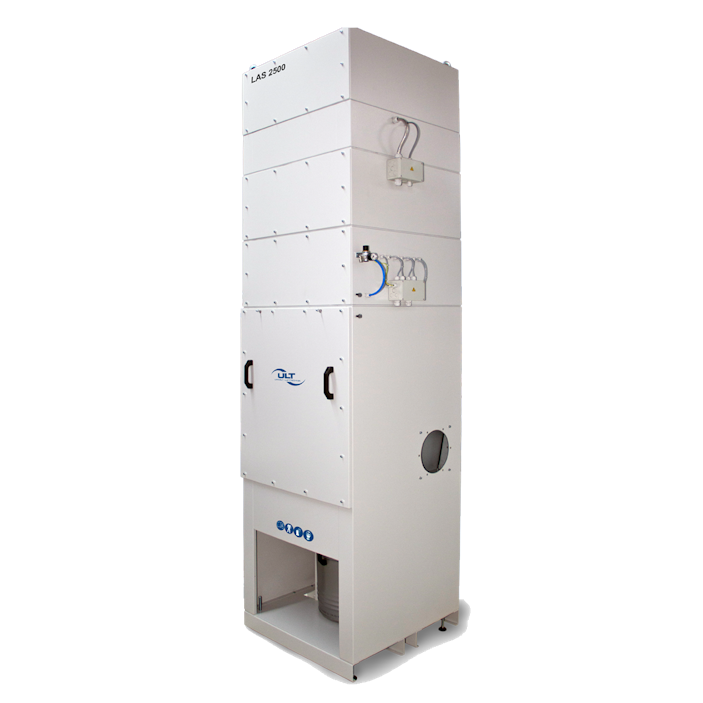

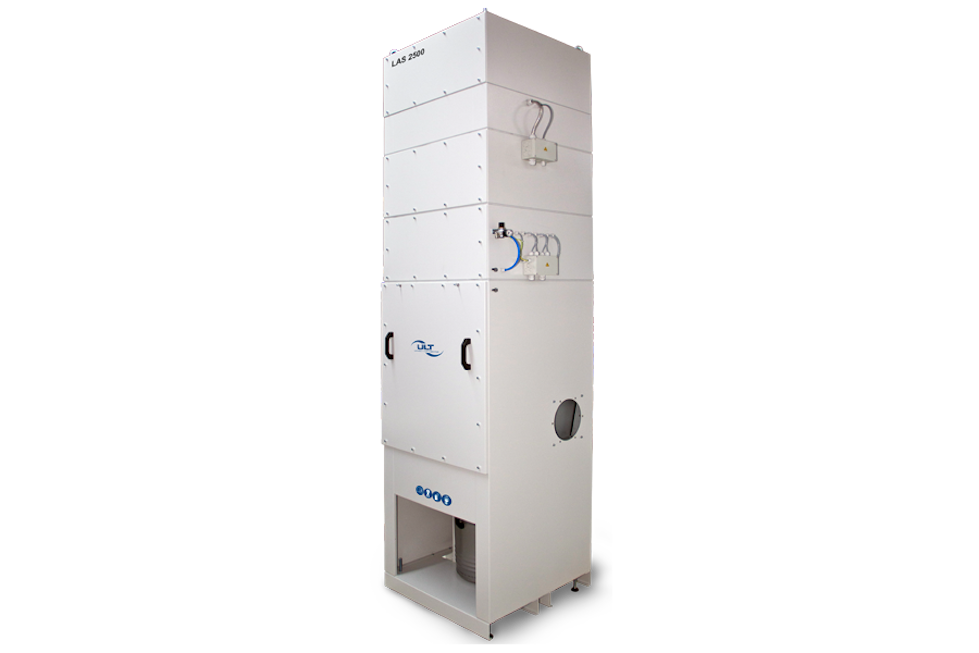

Stationary extraction system for very high contaminant yield with 70 L dust collection container
Cartridge filtration system with (automatically) cleanable filter elements
Differential pressure dependent filtration cartridge cleaning using rotating airjet
Powder-coated, robust housing
Check valve to prevent pipeline contaminant buildup
Special filter configurations
|Device version||LAS 2500 MD.63|
|Max. flow rate in m³/h||3250|
|Max. flow rate in cfm||1913|
|Max. vacuum in Pa||5000|
|Max. vacuum in inch wc||20.1|
|Nominal capacity in m³/h@Pa||3000 @ 2750|
|Nominal capacity in cfm@inch wc||1766 @ 11.1|
|Dimensions in mm (WxDxH)||900x1000x3120|
|Dimensions in inch (WxDxH)||35.4x39.4x122.9|
|Weight in kg||600|
|Weight in lbs||1323|
|Connection variants – diameter in mm||1 X 250|
|Connection variants – diameter in inch||1 x 9.84|
High filter service life
The high priority of filter elements in ULT systems reduces medium and long-term costs for maintenance and materials. In addition, the periods of downtime for necessary filter changes or system cleaning are significantly reduced.
Research and Development (R&D) has a very high priority at ULT. Several projects with prestigious partners and institutes have produced new approaches to ventilation systems that often become series products or are adapted quickly and easily to customer-specific projects.
Individual extraction solutions
Your extraction systems are adapted to your needs. Starting from the contaminant situation, via your internal processes, to the best possible collection solution, ULT advises and supports you in the selection and installation of your optimal extraction and filtration solution.
We are happy to offer you further information about our extraction systems and the respective filtration technology. We can also configure your individual solution as requested or required.
