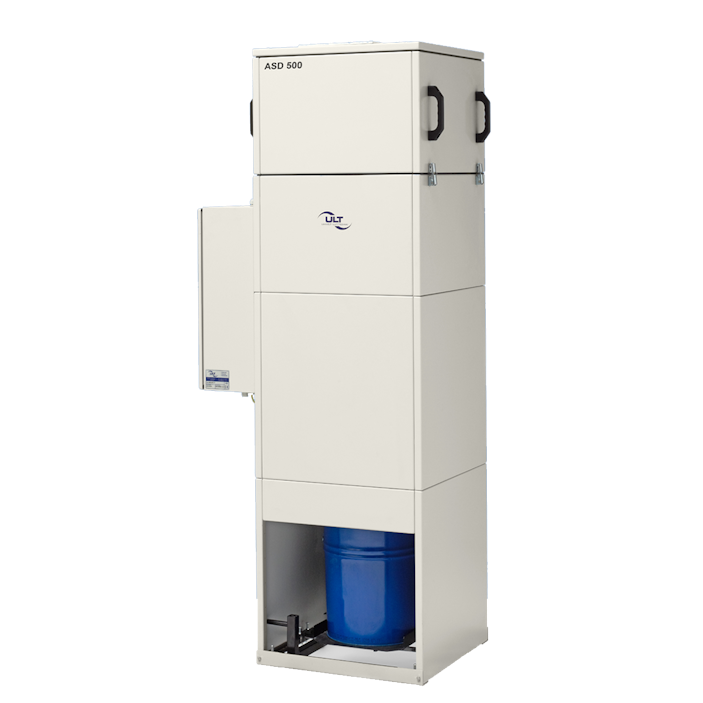

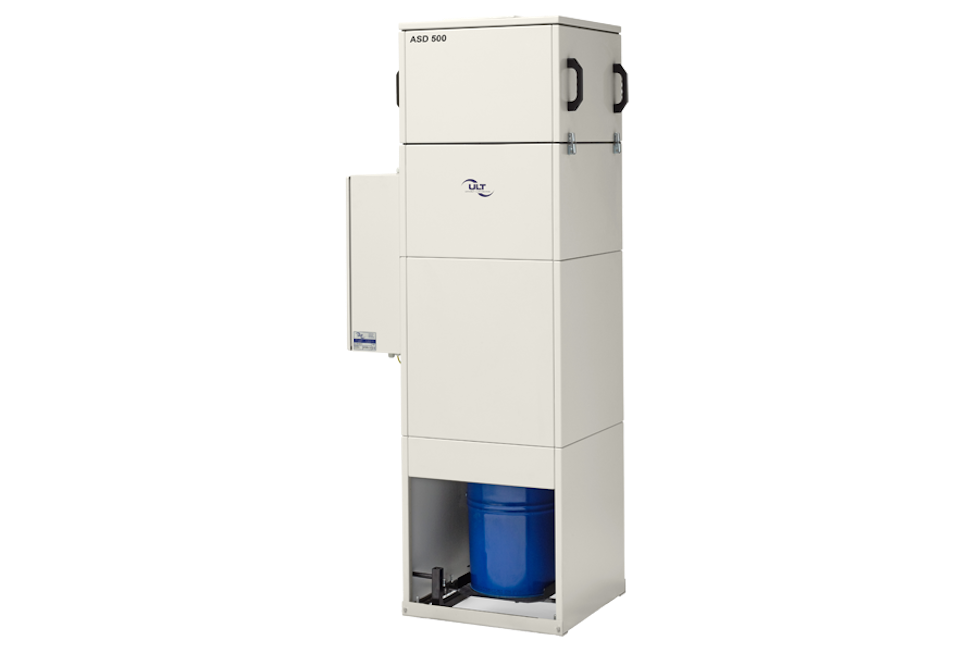

ASD 500 - dust extraction system
Product details
Appplication fields
Grinding, engraving, burnishing, cleaning
Decanting, mixing, grinding, etc.
Dust removal
Features
Stationary extraction unit for dry, non-combustible dusts
Cartridge filter system with automatically cleanable filter elements
Low maintenance
Powder coated, robust steel housing
Manual cleaning by means of push button
Interface SUB D9: standard configuration, remote I/O, operation report, filter saturation 100%
Technical specifications
| Device version | ASD 500 MD.47 | ASD 500 HD.14 |
|---|---|---|
| Max. flow rate in m³/h | 2100 | 400 |
| Max. flow rate in cfm | 1236 | 235 |
| Max. vacuum in Pa | 2880 | 20200 |
| Max. vacuum in inch wc | 11.6 | 82 |
| Nominal capacity in m³/h@Pa | 750 @ 2750 | 270 @ 5000 |
| Nominal capacity in cfm@inch wc | 441 @ 11.1 | 159 @ 20.1 |
| Dimensions in mm (WxDxH) | 660x590x2050 | 660 x590x2280 |
| Dimensions in inch (WxDxH) | 26x23.2x80.7 | 26x23.2x89.8 |
| Weight in kg | 150 | 150 |
| Weight in lbs | 330 | 330 |
| Noise level in dB | 62 | 62 |
| Connection variants – diameter in mm | 1 X Ø 125 / option: additional Ø | 1 X Ø 125 / option: additional Ø |
| Connection variants – diameter in inch | 1 X Ø 4.92 / option: additional Ø | 1 X Ø 4.92 / option: additional Ø |
System benefits
Optimal filter technology
Using the most sensible filtration technology ensures a long filter service life and, consequently, reduces the costs of maintenance and spare parts. ULT always offers you the optimal solution for your special contaminant technology to achieve the best filtration possible.
High filter service life
The high priority of filter elements in ULT systems reduces medium and long-term costs for maintenance and materials. In addition, the periods of downtime for necessary filter changes or system cleaning are significantly reduced.
Easy servicing
ULT’s extraction and filtration systems are designed so that they can be put into operation without problems and easily used. Should there be any questions, our service technicians would be happy to assist you at any time.
Individual extraction solutions
Your extraction systems are adapted to your needs. Starting from the contaminant situation, via your internal processes, to the best possible collection solution, ULT advises and supports you in the selection and installation of your optimal extraction and filtration solution.
Individual extraction solution
Your systems will be adapted to your needs. Starting with the pollutant situation and your internal processes to the best possible collection solution - we advise and support you in the selection and installation of your ideal extraction and filtration solution.
R&D basis
Research and Development (R&D) has a very high priority at ULT. Several projects with prestigious partners and institutes have produced new approaches to ventilation systems that often become series products or are adapted quickly and easily to customer-specific projects.
