LAS 260 – extensively applicable laser fume extractor
Product details
Application fields
Laser welding, laser engraving, laser cutting
Laser structuring, laser melting, laser cutting, laser cladding, etc.
Processing of plastics, metals, and organic materials
Features

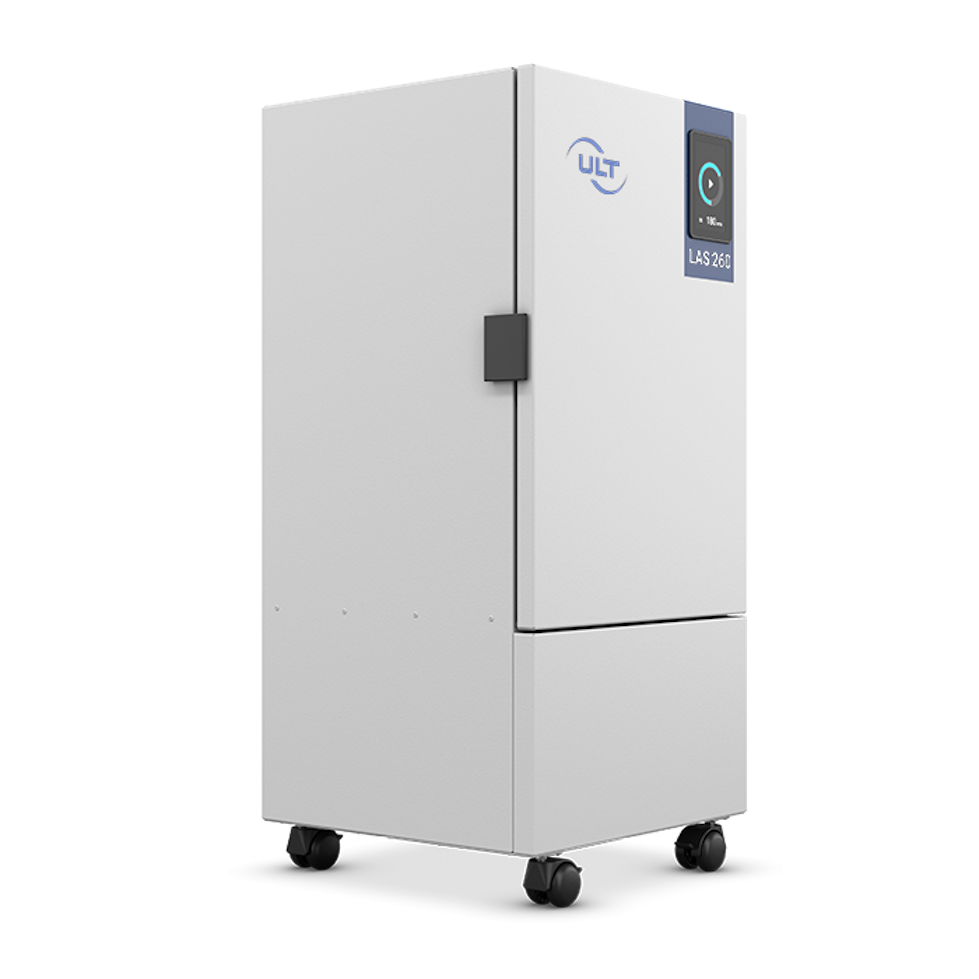

Mobile extraction system with wheels
Easy filter handling
Optimum filter concept for medium-term cost savings
Operation elements on front side
Volumetric flow control: stepless adjustment of extraction performance
Particle filter configuration: optic signaling
Powder-coated, robust steel housing
SUB D9 Interface
Options
Utilization of adsorption filter for odor control
Remote I/O, operations report, filter 100%
Technical specifications
| Device version | LAS 260 MD.14 | LAS 260 HD.16 | LAS 260 HD.19 |
|---|---|---|---|
| Max. flow rate in m³/h | 635 | 200 | 340 |
| Max. flow rate in cfm | 374 | 118 | 200 |
| Max. vacuum in Pa | 3200 | 22000 | 8300 |
| Max. vacuum in inch wc | 12.9 | 88.4 | 33.4 |
| Nominal capacity in m³/h@Pa | 250 @ 2000 | 160 @ 6500 | 200 @ 5000 |
| Nominal capacity in cfm@inch wc | 147 @ 8 | 94/26.1 | 118 @ 20.1 |

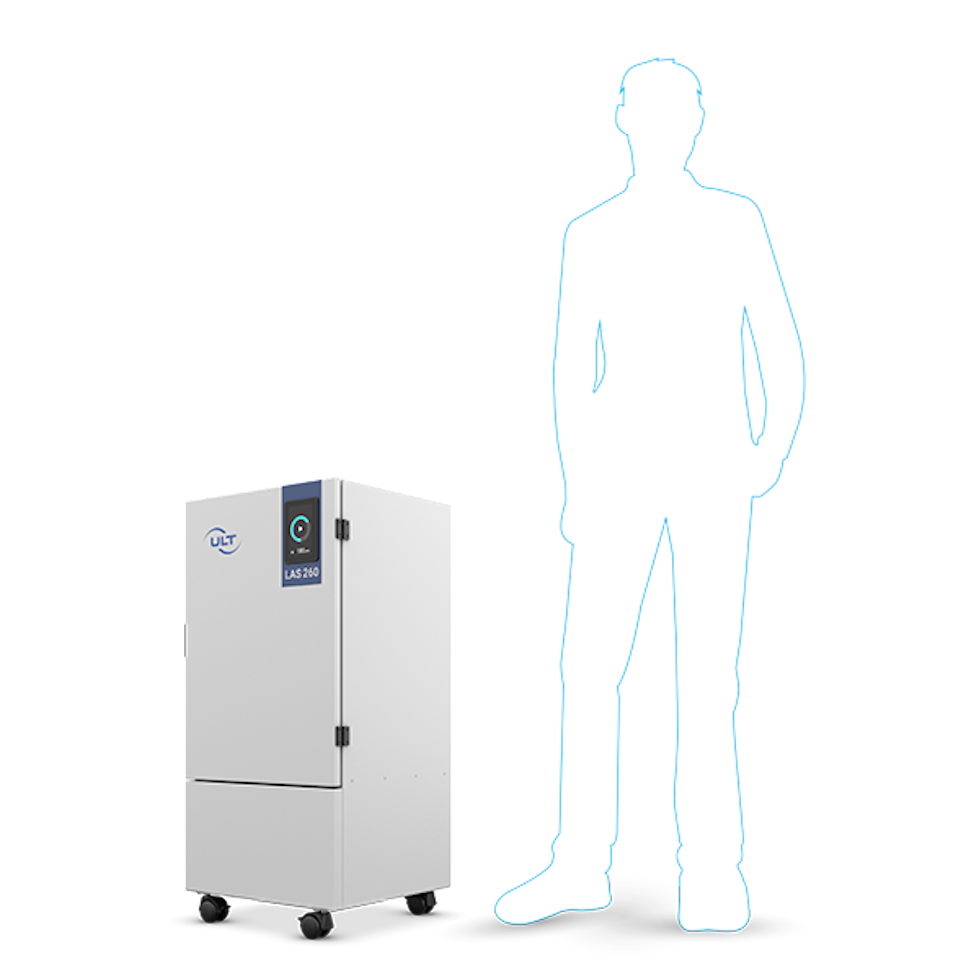

| Dimensions in mm (WxDxH) | 460x475x975 | 460x475x975 | 460x475x975 |
| Dimensions in inch (WxDxH) | 18.1x18.7x38.4 | 18.1x18.7x38.4 | 18.1x18.7x38.4 |
| Weight in kg | 80 | 80 | 80 |
| Weight in lbs | 176 | 176 | 176 |
| Noise level in dB | 51 | 60 | 68 |
| Connection variants – diameter in mm | 1 x 80 | 1 x 80 | 1 x 80 |
| Connection variants – diameter in inch | 1 x 3.15 | 1 x 3.15 | 1 x 3.15 |
System benefits
Quiet operation
ULT’s extraction and filtration systems are especially quiet. This is appreciated by numerous clients worldwide. This means your employees won’t be bothered by unnecessary noise.
High flexibility
Many of the ULT fume extraction systems can be utilized flexibly. For example, you can choose between mobile or stationary systems, device integrations or special ventilation solutions. If necessary, the ideal application is configured by ULT experts on-site.
Optimal filter technology
Using the most sensible filtration technology ensures a long filter service life and, consequently, reduces the costs of maintenance and spare parts. ULT always offers you the optimal solution for your special contaminant technology to achieve the best filtration possible..
Low energy requirements
ULT’s extraction systems reduce the operation and maintenance costs based on your optimal filtration plan. In addition, the system is designed so that the required energy consumption is kept very low.
Easy servicing
ULT’s extraction and filtration systems are designed so that they can be put into operation without problems and easily used. Should there be any questions, our service technicians would be happy to assist you at any time.
R&D basis
Research and Development (R&D) has a very high priority at ULT. Several projects with prestigious partners and institutes have produced new approaches to ventilation systems that often become series products or are adapted quickly and easily to customer-specific projects.
